H.265 5MP IP67 mini speed dome cameras 2.8-12mm 4x optical zoom Onvif rotation cameras 5MP POE power supply CCTV camera

Model: AP-P1080
Place of Origin: Guangdong,China (Mainland)
Compression: H.264/H.265
Resolution: 5MP
IR leds: 4pcs high power leds
IR distance: 40m
Lens: 2.8-12mm 4X optical zoom
Onvif: Standard Onvif
View angle: PAN : 350 degree Tilt : 70 degree
Motion detection: Support
Pan Rotation speed: 25 degree/S
Tilt Rotation speed: 20 degree /S

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

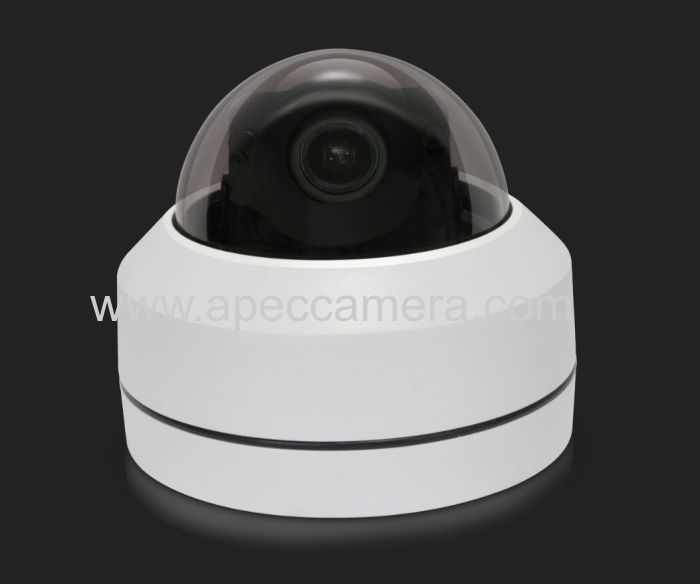

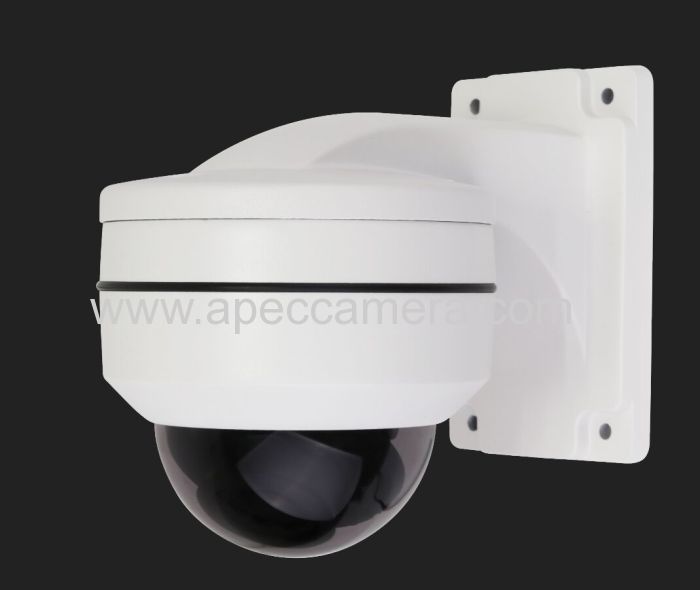

H.265 5MP IP67  mini speed dome cameras 2.8-12mm 4x optical zoom Onvif rotation cameras 5MP POE power supply CCTV camera

Features :



● 5.0MP HD Mini IR vision  speed dome cameras

●  Support Onvif protocol GB/T28281,work with Hikvision , dahua, XM  NVR

●  Plug and Plug  P2P mobile remote monitoring ;

● Support lightning protection, anti surge;

● Outdoor speed dome camera protection grade:IP67;

● Support Chinese and English IE interface and have operation tips function,user interface friendly;

●4PCS Infrared lights, effective IR distance 40m.

● 350°endless pan range and 0°- 70°tilt range.

● Max. pan preset speed of 25°/s and max. tilt preset speed of 20°/s

● Pan control speed 0°~25°/s, tilt control speed 0°~20°/s

● Support 16 presets, 1 patrol, 1 pattern, support AB Scan.

● Support Proportional zoom function, rotation speed can be

  adjusted automatically according to zoom multiple.



Specification :

Image sensor

5MP CMOS Sensor

Resolution

5.0MP

Low illumination

color:0.1Lux/F1.2;black-white 0.01Lux/F1.2

Electronic shutter

Auto/manual(1/5_1/20000s)

Day-night mode

Auto ICR

Optical zoom

2.8mm-12mm; 4x auto zoom

Pan angel

0.01°_350°

IR distance

40m

Pan speed

Horizontal rotation 350 ° continuous rotation,0°~25°/S

Tilt speed

0—20°/S

Tilt range

0°-70°

Proportional zoom

Support, change the speed based on the zoom

Preset

16

Patrol

1

Pattern scan

1

A.B scan

Support

Park function

Support,preset, cruise, pattern scan, two-point line sweep, horizontal automatic

Max image size

2688×1520

Output bit rate

32Kbps_16Mbps

Video compression

H.265/H.264 /MJPEG

Network protocol

TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP

Interface protocol

Onvif,hikvision,xm,jovision private protocol

Network interface

Built-in RJ45 network interface,support 10M/100M IP DATA

Application interface

Provide Linux,NindoNs SDK develop bag and CGI protocol,can be second fast developed

Browser

Support IE7,IE8,IE9,Chrome8+,Firefox3.5+,Safari5+

Power consumption

DC 12V1A/POE

Working temperature

-20℃~+60℃

Working humidity

≤90%RH(no frostless)

Protection grade

TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP67





Category: 5MP POE Zoom cameras
