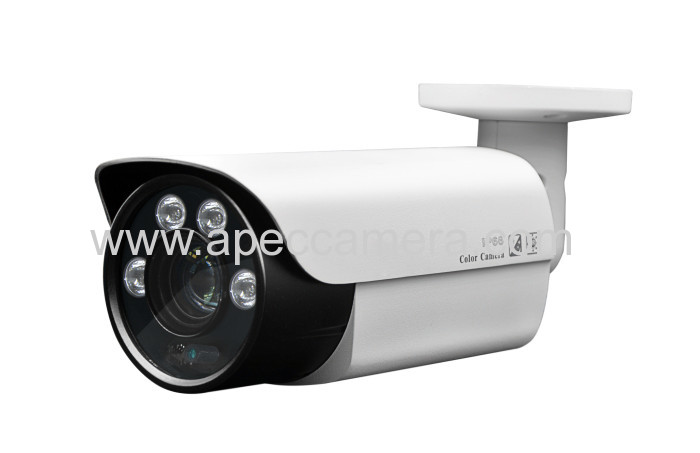

8MP 4K 2.8-12mm 4x auto zoom focus IR cameras 80m long IR vision 8MP IP66 outdoor cameras 4K HD Surveillance camera

Model: AP-P8083
Place of Origin: Guangdong,China (Mainland)
Products Name: 8MP IP Bullet cameras
Resolution: 4K
Video compression: H.265/H.264
Lens: 2.8-12mm auto zoom focus lens
IR Vision: 4pcs high power IR ,40m IR
Onvif: 17.06 version
P2P: Support
POE: Built in

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

8MP 4K 2.8-12mm 4x auto zoom focus IR cameras 80m long  IR vision 8MP IP66 outdoor cameras 4K HD Surveillance camera


8MP Features :

> 1/2.5" Sony CMOS sensor

> 4K resolution 3840 x 2160P

> Low illumination 0.01Lux

> Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT

> D-WDR, Mirror, rotate, Defogging

> Multiply Style OSD Overlay, Motion Detection, Privacy Mask

> RTSP and Onvif 17.06 compatible with many third-party NVRs

> Compatible with Hikvision/Dahua/Uniview/TVT NVR by privacy protocol.

> H.264/H.265 dual-stream media server

> Easy-to-use P2P Cloud service

> Support user authentication, video data encryption

> Support Alarm Snapshot to Email and FTP

> Multiply WEB browser IE, Firefox 32bit ESR, Chrome, PC Client, Mobile APP remote access

> Lightning protection 4000V

> Strong water-proof housing IP66

> 4 pcs Hi-power Array IR Leds, IR distance 80meters

> HD 2.8--12 mm AF/VF lens


8MP  Specification :

Model

AP-P8083-V1

AP-P8083-M

Camera

Image Sensor

1/2.5" Sony CMOS

Effective Pixels

8 megapixels

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.01Lux/F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

BLC /HLC

Support

DNR

2D/3D DNR

Other

AGC Motion Detection, Privacy Mask, Flip, Rotate, RIO, OSD overlay

Encode

Video Standard

H.264/H.265

Video Resolution

MainStream:15fps/8MP(3840x2160),30fps/6MP(3072x2048)/5MP(2592x1520)/3MP/1080P/720P,etc.
Sub stream: 720x480/VGA(640x480)/360P/QVGA/30fps,etc.

Video Bitrates

512Kbps - 12Mbps, VBR/CBR

OSD Overlay

Title and Time overlay, custom color adjustable

IR Led

IR Led

4 pcs Hi-power Array IR Led

IR Distance

60-80 M

Lens

Focal length

2.8 -12 mm varifocal lens

2.8 -12 mm motorized lens

Zoom

4x optical zoom

Auxiliary Interface

Memory Slot

N/A

Audio I/O

N/A

Alarm I/O

N/A

Network Services

Protocol

HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP/NFS, etc.

P2P

Yes

Web

IE, Firefox 32bit ESR, Chrome

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps, POE optional

Power Supply

12 VDC ± 10%, PoE(802.3af)

Power Consumption

< 10 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH



Available 5MP Specification ( 2.8-12mm motorized lens )    :


> 1/2.9"CMOS sensor

> Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT

> D-WDR, Motion Detection, Privacy Mask, Mirror

> RTSP and ONVIF 2.6.1 compatible

> H.265/H.264 dual-stream media server, Max.5MP HD output

> Easy-to-use P2P Cloud service

> Multi web browser, PC Client, mobile APP remote access

> With  POE , SD card , Audio and Alarm full function

> Lightning protection 4000V

> IR Distance 80M,4 led array

> 2.8-12mm Motorized Lens


Specification :

Model

AP-P5083-M1

Camera


Image Sensor

1/2.9"CMOS sensor

Effective Pixels

2592(H)×1944 (V)

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.1Lux/F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

Other

AGC,2/3 DNR, Motion Detection, Privacy Mask, Mirror, Flip

Encode


Video Standard

H.265/H.264

Video Resolution

H.265MainStream:15fps/5MP(2592x1944),20fps/4MP(2592x1520),25fps/3MP/1080P/720P


Sub stream: VGA(640x480)/360P/QVGA/25fps

Video Bitrates

512Kbps - 8Mbps, VBR/CBR

IR Led


IR Led

4 LEDS array

IR Distance

80m

Lens


Focal length

2.8-12mm Motorized Lens ( 5-50mm 10x zoom focus lens optional )

Auxiliary Interface

Memory Slot

Support

Audio Compression

Support

Audio I/O

Support

Alarm Input

Support

Alarm Output

Support

Network Services


Protocol

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPNP

P2P

Yes

Web

IE, Firefox, etc.

Media

CMS, Android, IOS

ONVIF

2.6.1 compatible

General


Network Port

1-RJ45, 100Mbps

Power Supply

12 VDC ± 10%, POE (802.3af)

Power Consumption

< 10 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH

N.W(kg)

1.35
