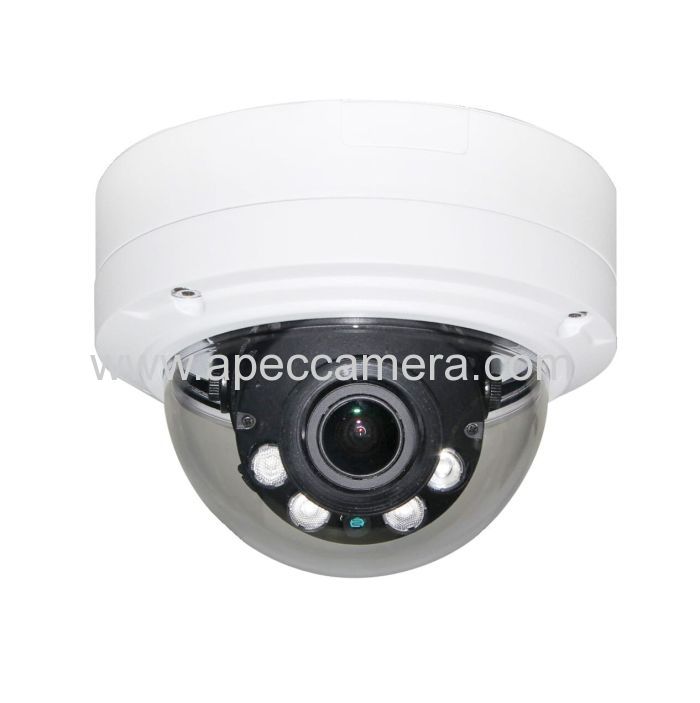

5MP true WDR vandalproof dome cameras 3.6-10mm auto focus IK10 IP dome cameras 5MP IPV6 real time 25fps/30fps camera

Model: AP-P5024-W-M
Place of Origin: Guangdong,China (Mainland)
Compression: H.265/H.264/MJPEG
Resolution: 5MP
IR leds: 4pcs high power leds
IR distance: 30m
Lens: 3.6-10mm auto focus
Onvif: 2.6.1
POE: Support
Audio: Support
Alarm: Support
WDR: 120dB

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

5MP true WDR vandalproof dome cameras 3.6-10mm auto focus IK10 IP dome cameras 5MP IPV6 real time 25fps/30fps camera

Features :

1/1.8" 5MP progressive scan CMOS

illumination color 0.05Lux/F1.2, B/W: 0.001lux/F1.2

Motorized lens 3.6-10mm

4pcs  led array,IR vision 30M

Day/Night(ICR)&3D DNR&AWB&AGC&BLC

True WDR , 120dB

Alarm&Audio&RS485 interface

RTSP and Onvif 2.6.1 compatible

Easy-to-use P2P Cloud service

Support mobile phone monitoring and P2P function

Built in POE ,Alarm,Audio, SD card slot

IP66 waterproof


Specification :



Model

AP-P5024-W-M

Camera

Image Sensor

1/1.8" 5MP progressive scan CMOS

Effective Pixels

2592 (H)×1944 (V)

Media Processor

High-performance Hisilicon DSP

Electronic Shutter

AUTO, 1/5s ~ 1/50,000s

Min. Illumination

Color 0.05Lux/F1.2, B/W: 0.001lux/F1.2, 0Lux IR On

Day/Night

Auto/Color/(B/W)/Timing

White Balance

Auto

Other

AGC, 2/3 DNR, Motion Detection, Privacy Mask, Mirror, Flip

WDR

120dB

Encode

Video Compression

H.265/H.264/MJPEG

Coding standard

H.265 MainProfile, H.264
Baseline/MainProfile / HighProfile,

Stream

Three-stream

Max Image Size

2592 (H)×1944 (V)

Frame Rate

Main Stream :
5.0Mp(2592 × 1944)/3.0Mp(2048 × 1536 ) /1080P(1920×1020) / 720P(1280×720)
Sub-stream :
25fps(P)/ 30fps(N) (640 × 480)
Third-Stream:
25fps(P)/ 30fps(N) (352 × 288)

Video Bitrates

200Kbps~12Mbps VBR/CBR

IR Led

IR Led

4pcs leds array,

IR Distance

IR vision 30m

Lens

Motorized lens 3.6-10mm

Auxiliary Interface

Audio In

1-channel 3.5mm audio interface MIC IN/Line IN

Audio Out

1-channel 3.5mm audio interface (line level,600Ω)

Memeory Slot

SD/SDHC (Max 128GB)

RS485

Yes (half duplex)

Alarm In

1Route Alarm In

Alarm Out

1Route Alarm Out

Video Out

built-in analog video output ( BNC port )

Reset

built-in Reset (press and hold 3 seconds valid)

Network Services

Protocols

IPv4/IPv6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP,
DNS,FTP,DDNS,PPPoE,SMTP,QOS,Onvif

P2P

Yes

Browser

IE(8,9,10,11),Chrome,Firefox,Safaribetc,etc

Software Development Kit

Linux/Windows C++/C SDK

ONVIF

2.6.1 compatible

General

Network Port

1-RJ45, 100Mbps

Power Supply

12 VDC ± 10%, P0E(802.3af)

Power Consumption

<7W

Weather proof rating

IP66

Operating Temp.

-30℃-(+60)℃, 10%-95%RH

Dimensions(mm)

φ137×99

Weight(kg)

0.8kg
