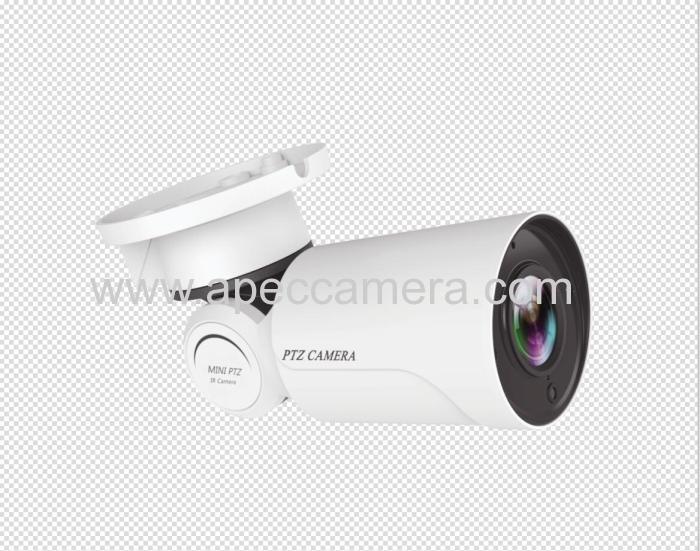

5MP Sony sensor IP cameras 2.7-13.5mm 5x optical zoom POE power supply IP PTZ cameras P2P IR vision surveillance camera

Model: AP-P1089
Place of Origin: Guangdong,China (Mainland)
Compression: H.264/H.265
Resolution: 5MP
IR leds: 6pcs high power leds
IR distance: 30m
Lens: 2.7-13.5mm 5X optical zoom
Onvif: 2.6.1
Motion detection: Support
RTSP: Support
Capture: Support
Power supply: DC12V/POE

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

5MP Sony sensor IP cameras 2.7-13.5mm 5x optical zoom POE power supply IP PTZ cameras P2P IR vision surveillance camera


Features :

1/2.9"Sony sensor CMOS

Full HD resolution 2592 x 1944P

Ultra low illumination 0.05Lux

 Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT

D-WDR, Motion Detection, Privacy Mask, Mirror, rotate

RTSP and ONVIF 2.6 compatible

H.265/H.264 dual-stream media server

Easy-to-use P2P Cloud service

Multi web browser, PC Client, mobile APP remote access

Lightning protection 4000V

Water-proof housing, IP66

6 PCS SMD Array IR Leds, IR distance 30m

Network PTZ control, 5 x zoom

HD 2.7 – 13.5 mm auto focus lens

Private protocol for Hikvision NVR, compatible with Hikvision IVMS4200, plug and play


Specification :

Model

AP-P1089

Camera



Image Sensor

1/2.9"Sony sensor CMOS

Effective Pixels

3096(H)x2196 (V)

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.05Lux/F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto

AGC/BLC

Support

DNR

2D/3D DNR

Other

Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Rotate

Encode


Video Standard

H.265/H.264

Video Resolution

Main Stream:
18fps/5MP(2592x1944),25fps/4MP(2592x1520),30fps/3MP/1080P/720P
Sub Stream: VGA(640x480)/360P/QVGA/25fps, etc.

Video Bitrates

32Kbps - 8Mbps, VBR/CBR

OSD Overlay

Title and Time overlay

IR Led



IR Led

6 PCS SMD array IR Led

IR Distance

30-40 M

Lens



Focal length

2.7 – 13.5 mm AF lens

Zoom

5x zoom

PTZ

Pan/Tilt Range

Pan: 0° ~ 180°; Tilt: 0° ~ 55°

Preset Point

1

Manual Control Speed

Pan: 0.5° ~20° /s; Tilt: 0.5° ~10° /s

Guard Position

Support

Power-off Recovery

Support

Network Services



Protocol

HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P

P2P

Yes

Web

IE, Firefox, etc.

Media

CMS, Android, IOS

ONVIF

2.6.1 compatible

General



Network Port

1-RJ45, 100Mbps POE (802.3af)

Power Supply

12 VDC ± 10%

Power Consumption

< 10 W

Operating Temp.

-20℃-(+60)℃, 10%-90%RH

Dimensions(mm)

168 x 95x70 mm

Weight(kg)

0.98 kg




Category: 5MP POE Zoom cameras
