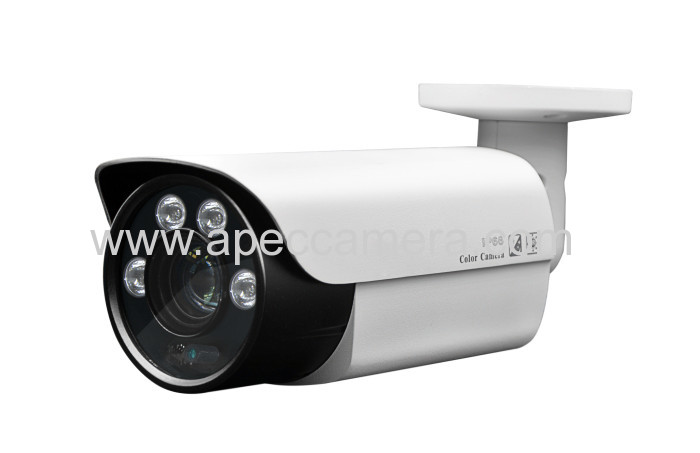

5MP HD 5-50mm 10X auto zoom IR vision outdoor cameras 80m long IR vision 5-50mm motorized lens 5MP security cameras

Model: AP-P1088
Place of Origin: Guangdong,China (Mainland)
Compression: H.264/H.265
Resolution: 5MP
IR leds: 4pcs high power leds
IR distance: 80m
Lens: 5-50mm 10X optical zoom
Onvif: 2.6.1
Motion detection: Support
RTSP: Support
Capture: Support
Power supply: DC12V/POE

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

5MP HD  5-50mm 10X auto  zoom IR vision outdoor cameras 80m long IR vision 5-50mm motorized lens 5MP security cameras

Features :

5MP 1/3"CMOS sensor

Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT

D-WDR, Motion Detection, Privacy Mask, Mirror

RTSP and ONVIF 2.6.1 compatible

H.265/H.264 dual-stream media server, Max.5MP HD output

Easy-to-use P2P Cloud service

Multi web browser, PC Client, mobile APP remote access

Lightning protection 4000V

IR Distance 80M,4pcs  led array

5-50mm 10x auto zoom Motorized Lens

Private protocol for Hikvision NVR, compatible with Hikvision IVMS4200, plug and play



Specification :

Model

AP-1088

Camera


Image Sensor

1/3"CMOS sensor

Effective Pixels

2592(H)×1944 (V)

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.1Lux/F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

Other

AGC,2/3 DNR, Motion Detection, Privacy Mask, Mirror, Flip

Encode


Video Standard

H.265/H.264

Video Resolution


H.265MainStream:15fps/5MP(2592x1944),20fps/4MP(2592x1520),25fps/3MP/1080P/720P

Sub stream: VGA(640x480)/360P/QVGA/25fps

Video Bitrates

512Kbps - 8Mbps, VBR/CBR

IR Led


IR Led

4pcs IR  array

IR Distance

80m

Lens


Focal length

5-50mm Motorized Lens

Auxiliary Interface

Memory Slot

N/A

Audio Compression

N/A

Audio I/O

N/A

Alarm Input

N/A

Alarm Output

N/A

Network Services


Protocol

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPNP

P2P

Yes

Web

IE, Firefox, etc.

Media

CMS, Android, IOS

ONVIF

2.6.1 compatible

General


Network Port

1-RJ45, 100Mbps

Power Supply

12 VDC ± 10%, POE (802.3af)

Power Consumption

< 10 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH

N.W(kg)

1.35
