5MP HD 4g 3g WIFI IP security cameras P2P 4g wire free 5MP wifi IP PTZ dome cameras 4g 3g 5MP HD CCTV cameras

Model: AP-1066-3G/4G
Place of Origin: Guangdong,China (Mainland)
Products Name: 3G/4G Wifi IP PTZ camera
Compression: H.265/H,264
Resolution: 5MP
Sensor: Sony imx 335
IR Vision: 6pcs IR leds, 50m IR vision
Lens: 2.7-13.5MM
P2P: support
Onvif: Standard 2.4
SD card storage: Max 128G
Microphone: Built in

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

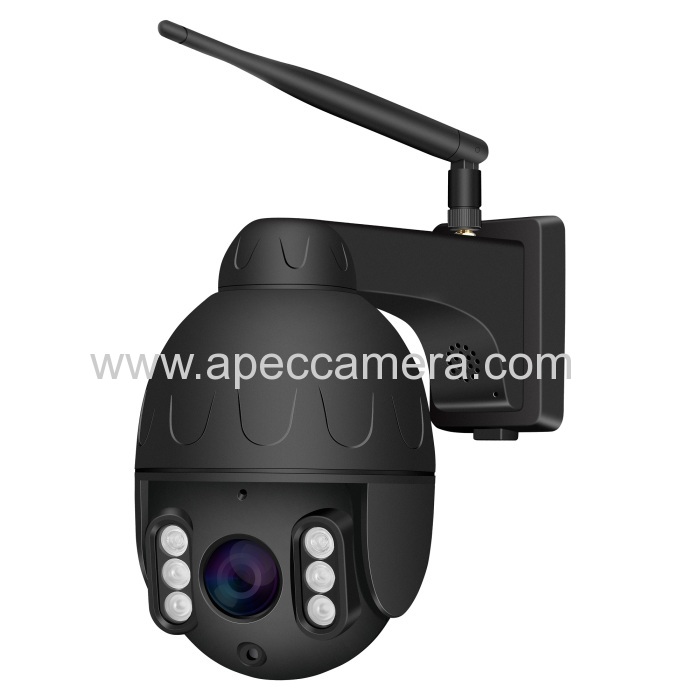

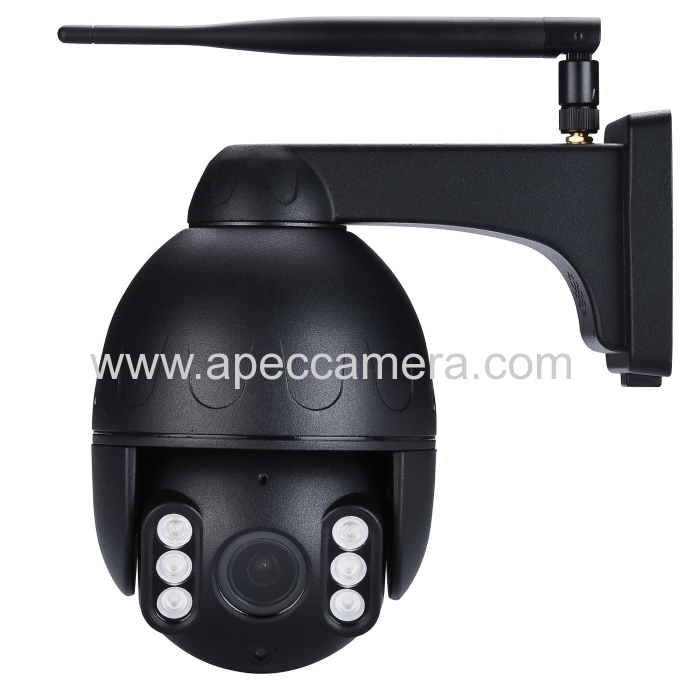

Products :   5MP HD 4g 3g WIFI IP security cameras P2P 4g wire free 5MP wifi IP PTZ dome cameras 4g 3g 5MP HD CCTV cameras


Features :

5.0 megapixel HD 3G/4G IP camera, maximum resolution 2560x1920;

Support 3G/4G, support AP mode;

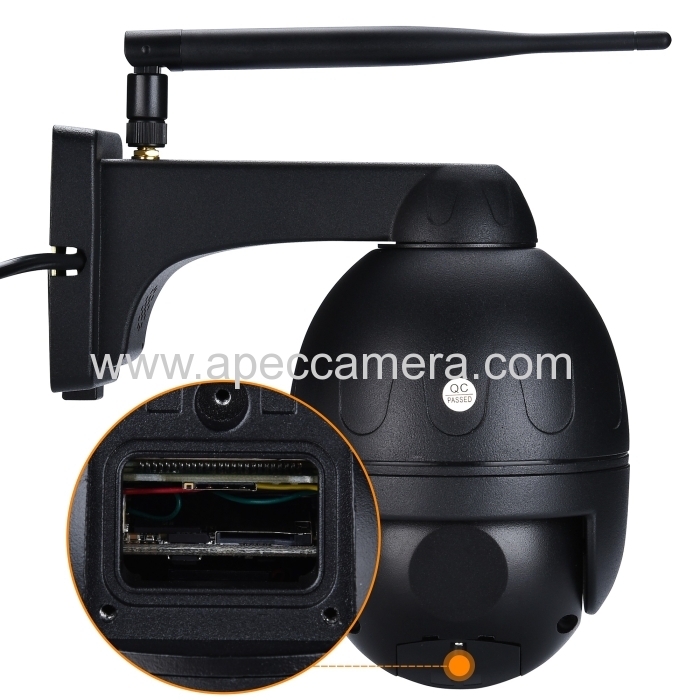

Support up to 128G TF card storage;

2.7-13.5mm 5X optical zoom auto focus lens;

Support two way audio(built-in MIC and speakers);

Pan tilt rotation, horizontal:355°&vertical:120°;

Waterproof level IP66;

6pcs array infrared LEDs, night vision distance 50m;

Support P2P, view & anywhere & anytime;

Elegant outline and easy installation;

Provide android & ios APP and professional CMS PC client software;

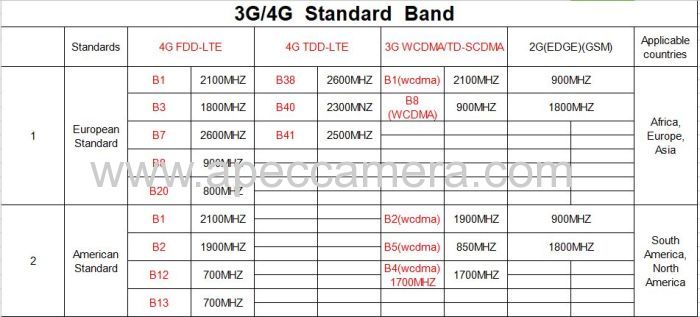

4G 3G Band frequency :


Specification :

Model

AP-P1066-3G/4G

Video

Sensor

5.0 megapixel 1/2.8" SONY335 low lux CMOS

Video resolution

Main stream: 2560x1920@15fps, 2560x1440@15fps

Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps

Video compression

H.264/H.265

Lens

2.7-13.5mm 5X optical zoom auto focus lens

View angle

96°~26.2°

Night vision

6pcs array infrared LEDs, night vision distance 50m

Audio

Audio compression

G.726/G.711

Audio code rate

8Kbps, 16bit

Audio input/output

Built-in MIC and speakers, support two way audio

Alarm

Motion detecting alarm

Can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage

Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push,
Alarm trigger sound alarm

Alarm recording

Support Micro SD card and PC client linkage alarm recording

Storage

Micro SD card

Support up to 128G micro SD card

Recording mode

Alarm record, timing record,

Video playback

Support APP, IE browser, remote client play and download the video

PTZ

Rotation angle

Horizon: 0°~355°, Vertical: 0°~120°

Horizontal speed

10°~ 30°/S

Vertical speed

8°~ 25°/S

Preset

8 preset points, supports cruise function

General specification

Power

DC12V 2A

Operating environment

Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing

Shell material

All metal shell

Waterproof level

IP66

Product size

160mm×100mm×175mm(L×W×H)

Product weight

0.9kg

Package size

225mmx205mmx120mm(L×W×H)

Package weight

1.2kg

Reset button

Support
