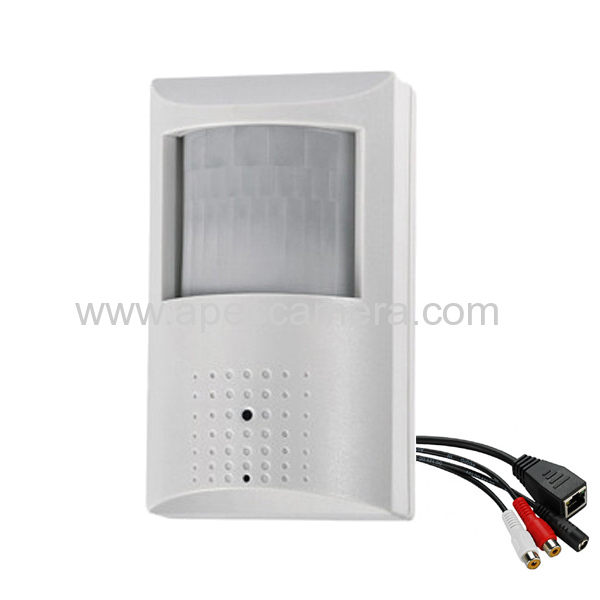

3.7mm Pinhole lens 3g 4g wifi 2MP IP cameras P2P mobile phone two way audio 1080P 3g 4g wire free PIR cameras

Model: AP-P1070-3G/4G
Place of Origin: Guangdong,China (Mainland)
Products Name: 3G/4G IP MINI camera
Compression: H.264
Resolution: 2MP
Sensor: Sony imx 323
IR Vision: 48pcs IR leds, 20m IR vision
Lens: 3.7mm
P2P: support
Onvif: Standard 2.4
SD card storage: Max 128G

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

3.7mm Pinhole lens 3g 4g wifi 2MP IP cameras P2P mobile phone two way audio 1080P 3g 4g wire free PIR cameras






Features :

2.0 megapixel HD 3G/4G IP camera, maximum resolution 1920*1080;

Support 3G/4G, support AP mode;

Support up to 128G TF card storage;

Built in audio ;

3.7mm pinhole lens ;

Waterproof level IP66;

48pcs IR LEDs, night vision distance 20m;

Support P2P, view & anywhere & anytime;

Elegant outline and easy installation;

Provide android & ios APP and professional CMS PC client software;

Support  all  over the world  3G/4G band



Specification :


Model

AP-P1070-3G/4G

Video

Sensor

2.0 megapixel 1/2.9" SONY323 low lux CMOS


Video resolution

Main stream: 1920x1080@20fps, 1280x720@25fps

Sub stream: 640x352@25fps, 320x176@25fps


Video compression

H.264


Lens

3.7mm pinhole lens


View angle

77°


Night vision

48pcs IR leds ,20m IR vision

Alarm

Motion detecting alarm

Can set 4 independent detection region (1-100 sensitivity can be set)


Alarm linkage

Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push


Alarm recording

Support Micro SD card and PC client linkage alarm recording

3G/4G

3G standard

WCDMA/TD-SCDMA


3G frequency range

B2(1900MHz),B4(1700MHz),B5(850Mhz),B1(2100MHz), B8(900MHz),B2(1900MHz), B4(1700MHz)


4G standard

FDD-LTE/TDD-LTE


4G frequency range

B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz)


Interface type

Micro SIM card, Plug and play, no need to set

Storage

Micro SD card

Support up to 128G micro SD card


Recording mode

Alarm record, timing record,


Video playback

Support APP, IE browser, remote client play and download the video

General specification

Power

DC12V 1A


Operating environment

Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing


Shell material

Plastic







Category: 2.0MP 3G/4G cameras
