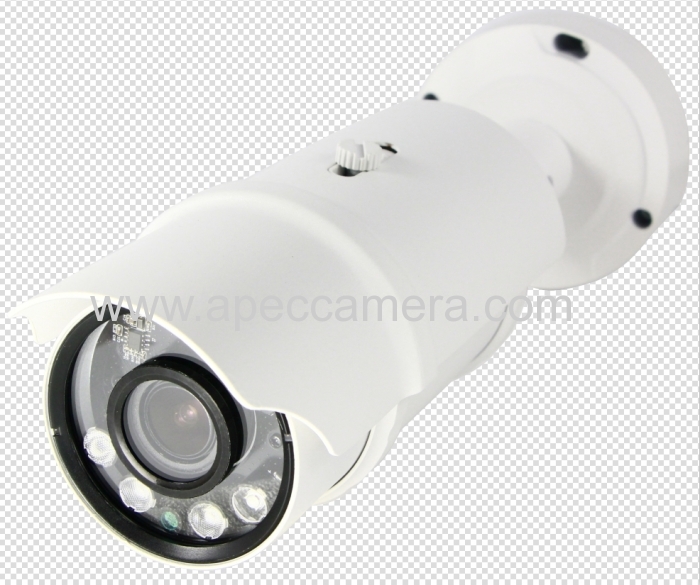

12MP Ultra HD IR bullet IP cameras 4K real time outdoor IR vision CCTV Cameras 3.6-11mm auto focus Smart IR cameras

Model: AP-P1223-DW-M
Place of Origin: Guangdong,China (Mainland)
Compression: H.265/H.264/MJPEG
Resolution: 12MP
IR leds: 4pcs high power leds
IR distance: 30m
Lens: 3.6-11mm auto focus
Onvif: 2.6.1
POE: Support
Audio: Support
Alarm: Support
WDR: 100dB

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

12MP Ultra HD IR bullet IP cameras 4K real time outdoor IR vision CCTV Cameras 3.6-11mm auto focus IR waterproof cameras

Features :

UP to 12 megapixel resolution
20fps@12MP(4000*3000), 30fps@4K(3840*2160)
H.265 Main Profile, H.264 Baseline/Main Profile/High Profile
WDR≥100dB
Day/Night(ICR)&3D DNR&AWB&AGC&BLC
Shake Alarm &Smart IR Function, IR range(5~30m)
Motorized-lens 3.6-11mm lens
Alarm&Audio&RS485 interface
Support mobile phone monitoring and P2P function
PoE function
IP66 rating


Specification :

Model

AP-P1223-DW-M

Camera

Media Processor

High-performance Hisilicon DSP

Image Sensor

1/1.7 12MP progressive scan CMOS

Shuttle time

1/5s to 1/50,000s

Min Illumination

Color:0.1 Lux /F1.2 B/W:0.001 Lux / F1.2;0Lux IR on

Motorized-Lens

3.6-11mm auto focus lens

IR Range

Up to 30m

Day Night

IR cut filter with auto switch

Smart IR /Shake Alarm

Support

Compression

Video Compression

H.265/H.264/MJPEG

Coding standard

H.265 MainProfile, H.264 Baseline/MainProfile/HighProfile,

Audio Compression

G.711a/G.711u/RAW_PCM

Audio Bit Rate

G.711a(8kbps)/G.711u(8kbps)/RAW_PCM(16kbps)


Max Image Size

4000(H)×3000(V)

Stream
Frame Rate

Dual-stream

Main Stream : 20fps @(4000*3000);30fps@(3840x2160)
Sub-stream : 30fps @ (640 × 360);

Network

Alarm Trigger

Motion detection, tampering alarm, network disconnect, storage exception

Protocols

IPv4/IPv6, RTSP/RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS, FTP,DDNS, PPPoE, SMTP, QOS, ONVIF

ONVIF

V2.4 Version

Browser

IE(8, 9, 10, 11),Chrome, Firefox, Safari, etc.

SoftwareDevelopmentKit

Linux/Windows C++/C SDK

Interface

Audio In

1-channel 3.5mm audio interface MIC IN/Line IN

Audio Out

1-channel 3.5mm audio interface (line level,600Ω)

RS485

Yes (half duplex)

Alarm

1 In/1 Out

Video Out

1Vp-p Composite Output(75Ω/BNC)

Network

1 RJ45 10M/100M adaptive Ethernet port

Reset

A reset button (press and hold 3 seconds valid)

General Specifications

Operating Conditions

-40℃ ~ 60℃,humidity less than 95%

Power Supply

DC12V±10%, PoE (802.3af)

Power Consumption

7W

Weather proof rating

IP66

Dimensions(mm)

φ105×290.5

Weight(kg)

1.2





Category: 12MP IP cameras

Related Category: 2MP Low lux IP cameras  3MP Real time True WDR cameras  5MP Real time true WDR cameras
