1080P full HD 3G 4G Wifi IP speed dome cameras 6-22mm 4x optical zoom long IR vision 3g wireless IP cameras

Model: AP-P1066-3G/4G/4X
Place of Origin: Guangdong,China (Mainland)
Compression: H.264
Resolution: 1080P
Technology: 3G/4G/Wifi/Wire
IR leds: 6pcs high power leds
IR distance: 60m
Lens: 6-22mm 4x optical zoom
SD card: 128G
Onvif: standard 2.4
P2P: Mobile phone/PC/ Tablet
Motion detection: support

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

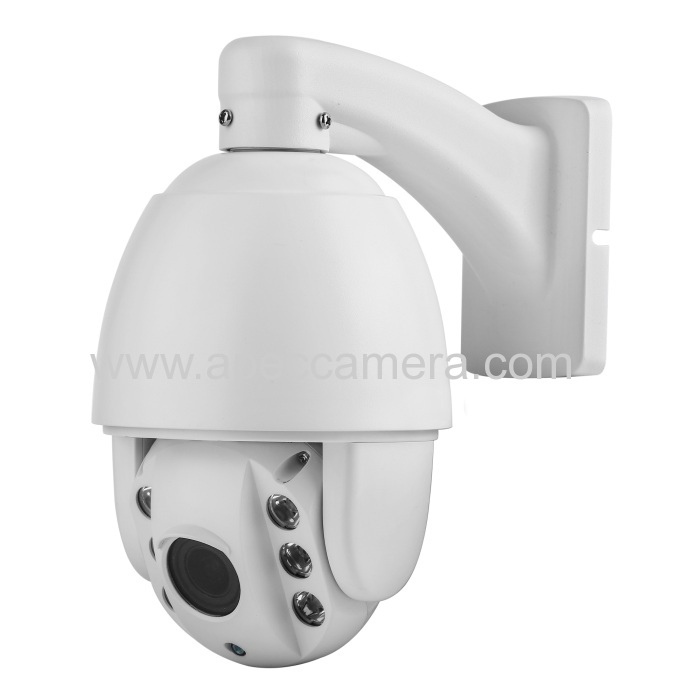

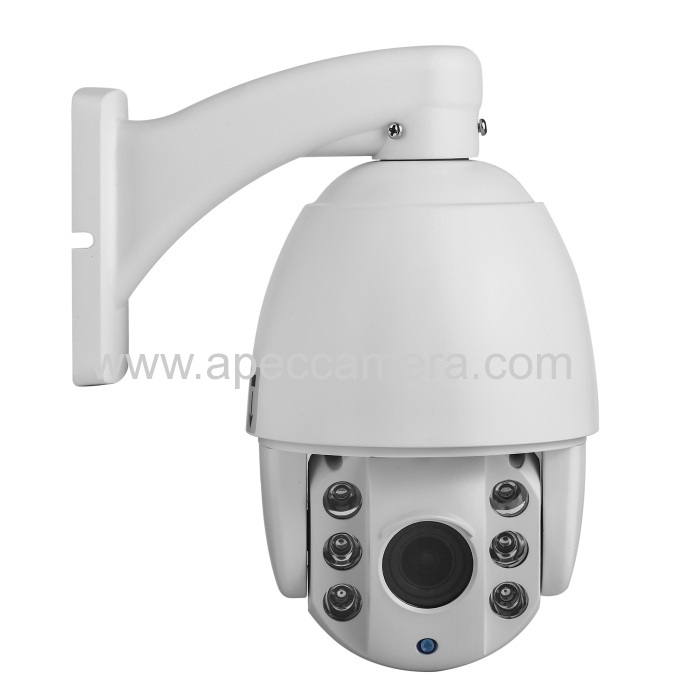

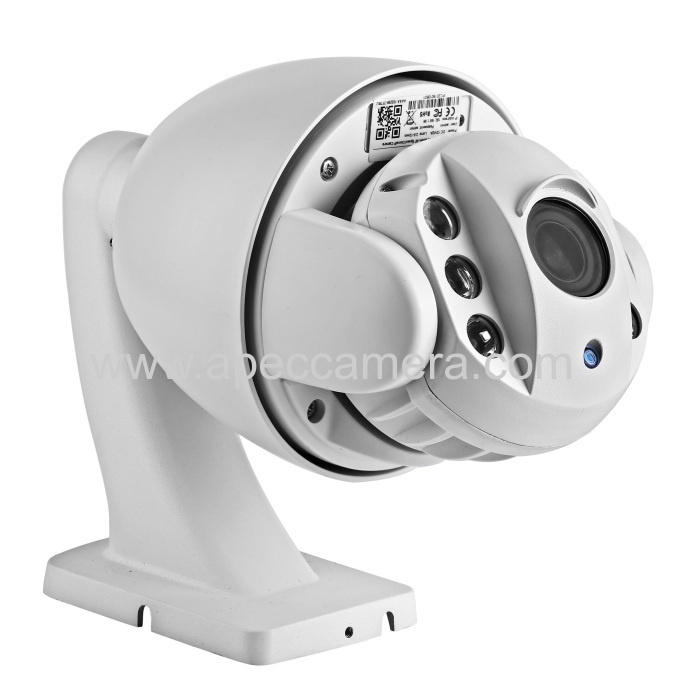

1080P full HD 3G 4G Wifi IP speed dome cameras 6-22mm 4x optical zoom long IR vision 3g wireless IP cameras


 Features

2.0 megapixel HD 4G IP camera, maximum resolution 1920*1080;

Support 4G, support AP mode;

Support up to 128G TF card storage;

6-22mm 4X optical zoom auto focus lens;

Support two way audio;

Pan tilt rotation, horizontal:355°&vertical:90°;

Waterproof level IP66;

6pcs array infrared LEDs, night vision distance 60m;

Support P2P, view & anywhere & anytime;

Elegant outline and easy installation;

Provide android & ios APP and professional CMS PC client software;


Specification :

Video

Sensor

2.0 megapixel 1/2.9" SONY323 low lux CMOS


Video resolution

Main stream: 1920x1080@25fps, 1280x720@25fps

Sub stream: 640x352@25fps, 320x176@25fps


Video compression

H.264


Lens

6-22mm 4X optical zoom auto focus lens


View angle

60°~8°


Night vision

6pcs array infrared LEDs, night vision distance 60m

Audio

Audio compression

G.726/G.711


Audio code rate

Rate adaptive


Audio input

Support, can connect the pickup and MIC


Audio output

Support, can connect speakers

Alarm

Motion detecting alarm

Can set 4 independent detection region (1-100 sensitivity can be set)


Alarm linkage

Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push


Alarm recording

Support Micro SD card and PC client linkage alarm recording

3G/4G

3g/4g standard

FDD-LTE/TDD-LTE/WCDMA/TD-SCDMA


4G frequency range

B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz)


3G frequency range

B1( 2100MHz) ,B8(900MHz ),B2(1900MHz), B5(850MHz ), B4( 1700MHz )


Interface type

Micro SIM card, Plug and play, no need to set

Storage

Micro SD card

Support up to 128G micro SD card


Recording mode

Alarm record, timing record,


Video playback

Support APP, IE browser, remote client play and download the video

PTZ

Rotation angle

Horizon: 0°~355°, Vertical: 0°~90°


Horizontal speed

20°~ 40°/S


Vertical speed

10°~ 20°/S


Preset

Support 8 preset points

General specification

Power

DC12V 2A


Operating environment

Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing


Waterproof level

IP66


Product size

239mm×137mm×215mm(L×W×H)


Product weight

1.3kg


Package size

260mmx230mmx170mm(L×W×H)


Package weight

1.7kg


Reset button

Support
