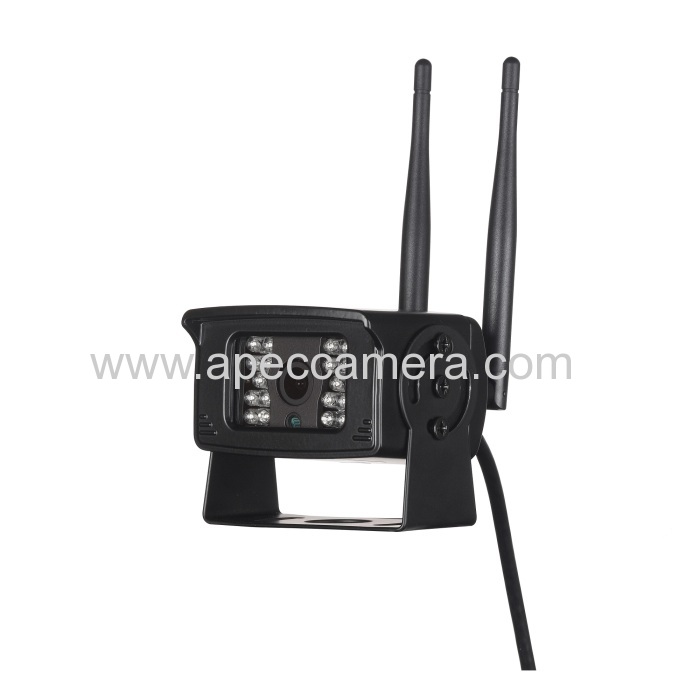

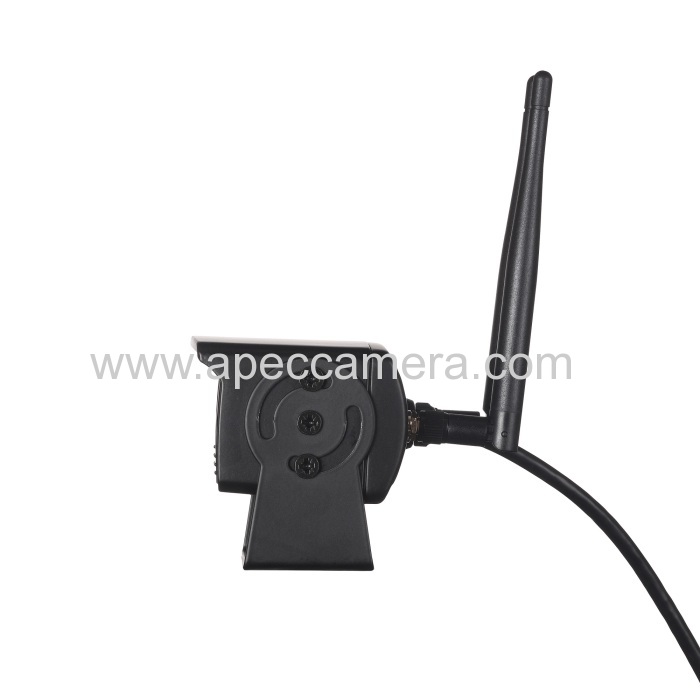

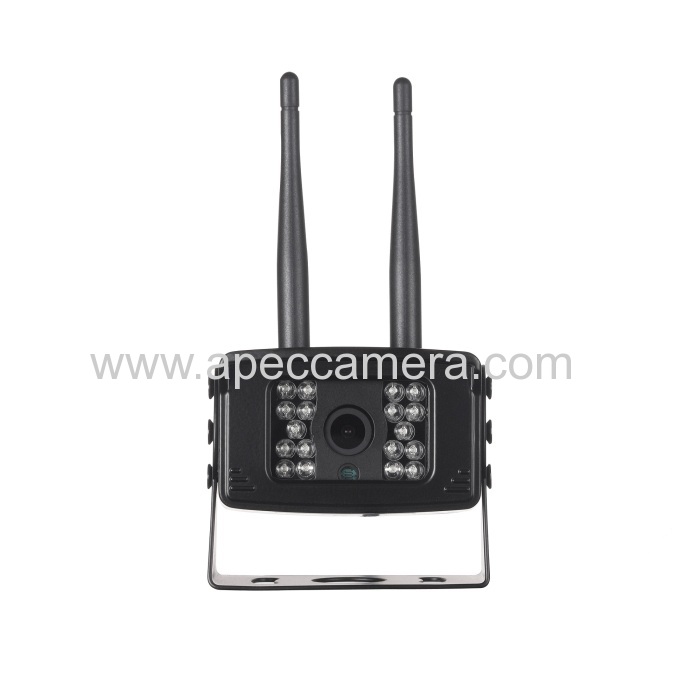

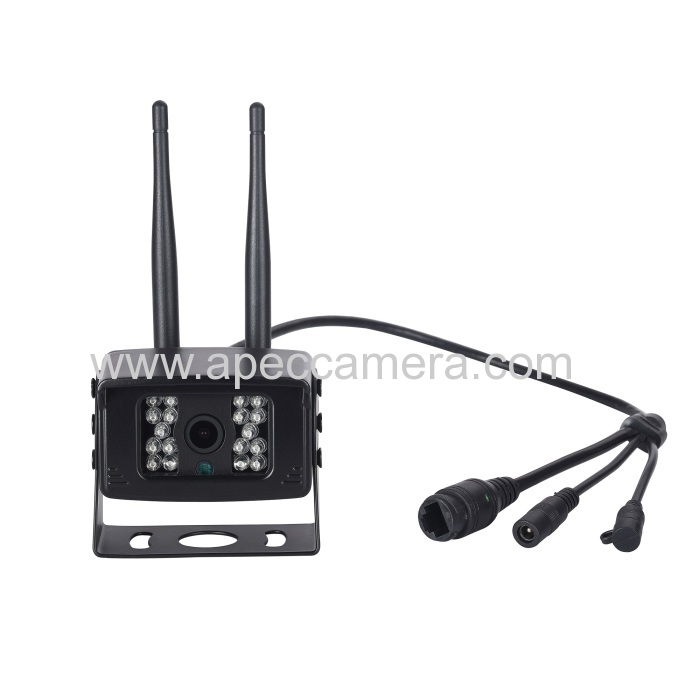

1080P HD 3G/4G wire free IP cameras 2MP Mini wireless CCTV cameras Plug and play IP cam 4G sim card IR vision cam

Model: AP-P1010-3G/4G
Place of Origin: Guangdong,China (Mainland)
Products Name: 3G/4G Wifi Mini IP camera
Compression: H.264
Resolution: 2MP
Chipset: 3516C
Sensor: Sony imx 323
IR Vision: 18pcs IR leds, 20m IR vision
Lens: 3.6mm
P2P: support
Onvif: Standard 2.4
SD card storage: Max 128G

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Products : 1080P HD  3G/4G  wire free  IP  cameras  2MP  Mini  wireless CCTV cameras Plug and play IP cam 4G sim card IR vision cam



Featuers :

2.0 megapixel HD 3G/4G IP camera, maximum resolution 1920*1080;

Support 3G/4G, support AP mode;

Support up to 128G TF card storage;

3.6mm lens;

Waterproof level IP66;

18pcs infrared LEDs, night vision distance 20m;

Support P2P, view & anywhere & anytime;

Elegant outline and easy installation;

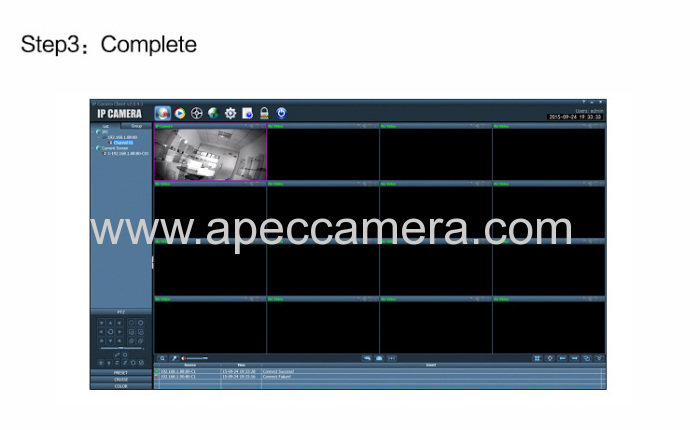

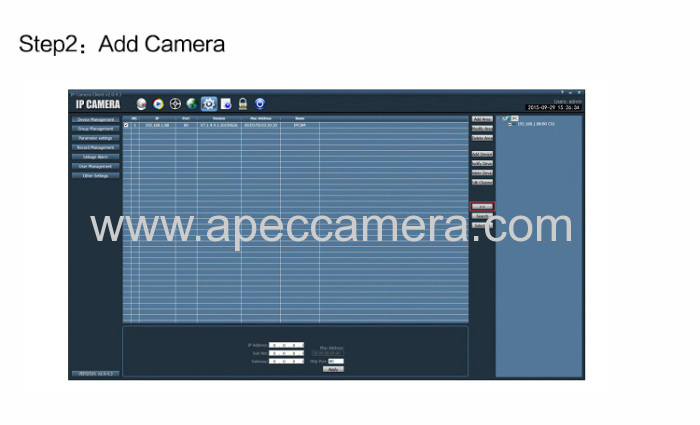

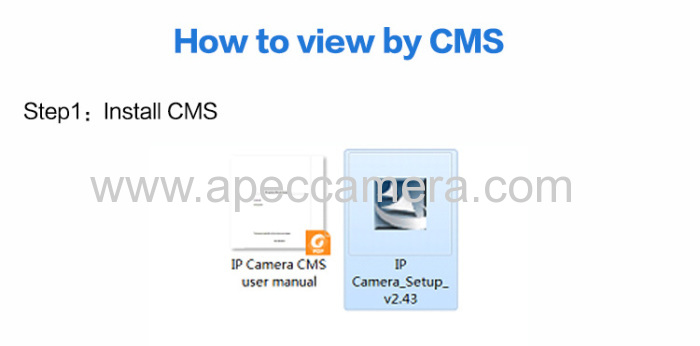

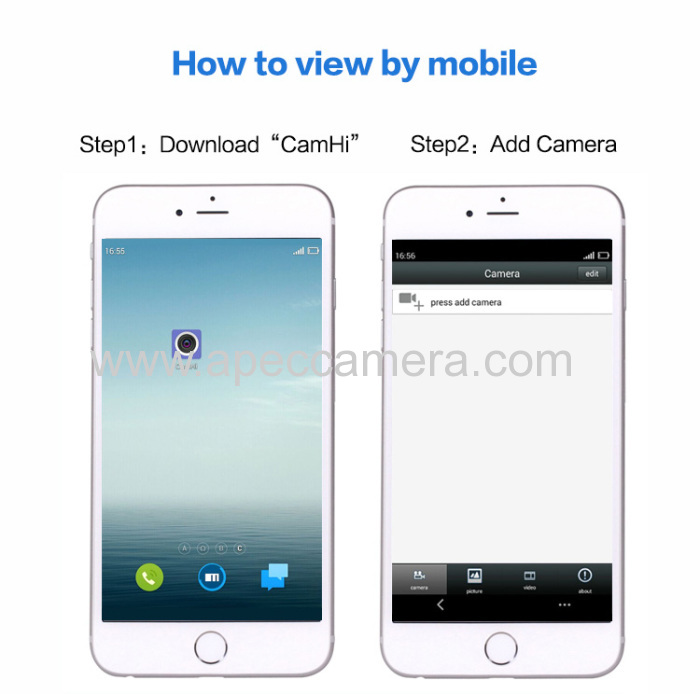

Provide android & ios APP and professional CMS PC client software;

Support all over the world 3G/4G band


Specification :

Model

AP-P1010-3G/4G

Video

Sensor

2.0 megapixel 1/2.9" SONY323 low lux CMOS

Video resolution

Main stream: 1920x1080@15fps, 1280x720@25fps

Sub stream: 640x352@25fps, 320x176@25fps

Video compression

H.264

Lens

Optional 2.8/3.6(default)/6mm lens

View angle

89.9°/75.7°(default)/50° based on lens

Night vision

18pcs infrared LEDs, night vision distance 20m

Alarm

Motion detecting alarm

Can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage

Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push

Alarm recording

Support Micro SD card and PC client linkage alarm recording

3G/4G

3G standard

WCDMA/TD-SCDMA

3G frequency range

B1(2100MHz), B8(900MHz),B2(1900MHz), B4(1700MHz) , B5(850MHz)

4G standard

FDD-LTE/TDD-LTE

4G frequency range

B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz),B38(2600MHz),B40(2300MHz),B41(2500MHz),  B2(1900MHz), B12(700MHz), B13(700MHz)

Interface type

Micro SIM card, Plug and play, no need to set

Storage

Micro SD card

Support up to 128G micro SD card

Recording mode

Alarm record, timing record,

Video playback

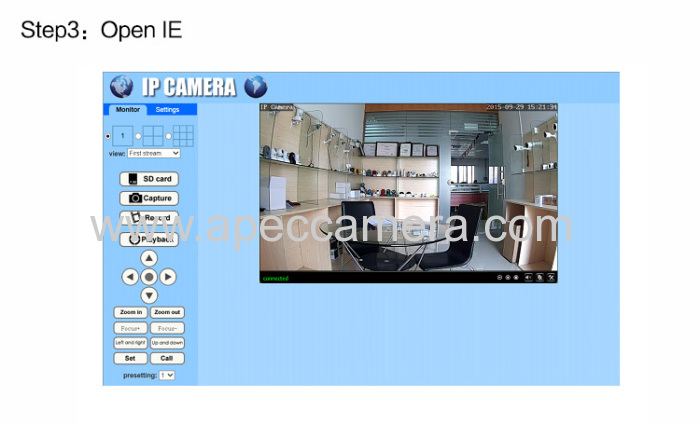

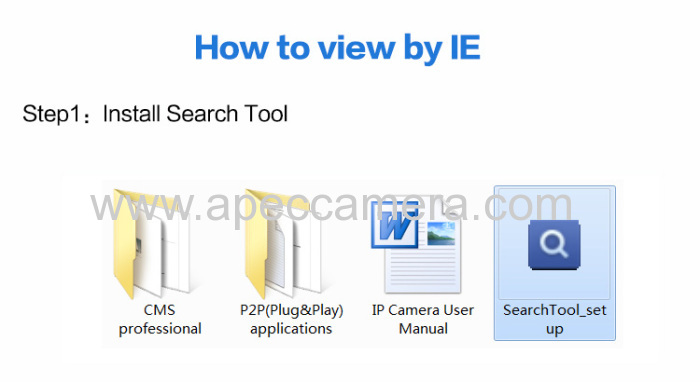

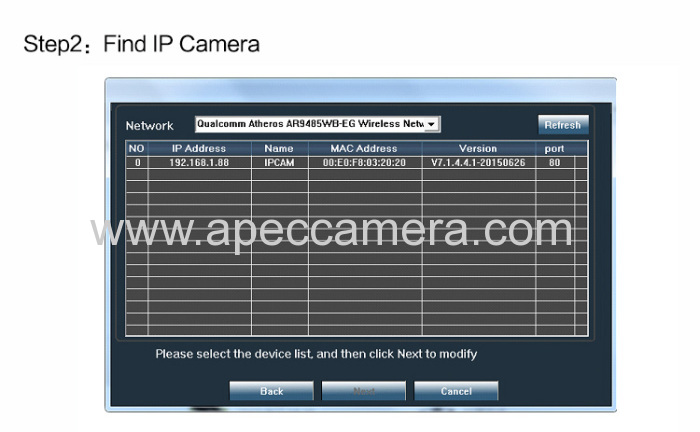

Support APP, IE browser, remote client play and download the video

General specification

Power

DC12V 1A

Operating environment

Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing

Shell material

All metal shell

Waterproof level

IP66

Product size

70mm×60mm×55mm(L×W×H)

Product weight

0.4kg

Package size

190mmx130mmx90mm(L×W×H)

Package weight

0.55kg

Reset button

Support
