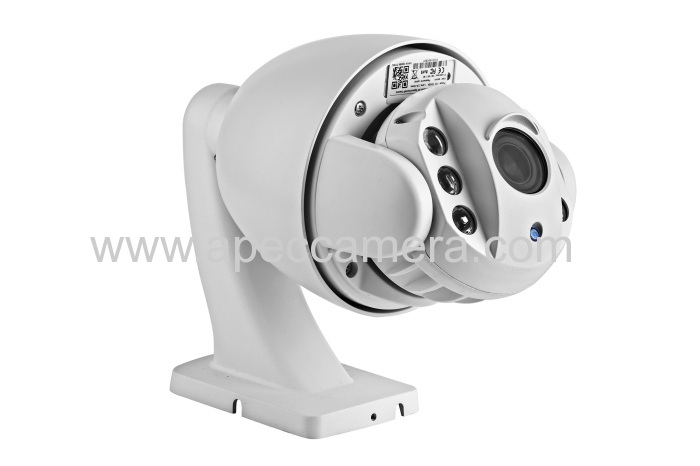

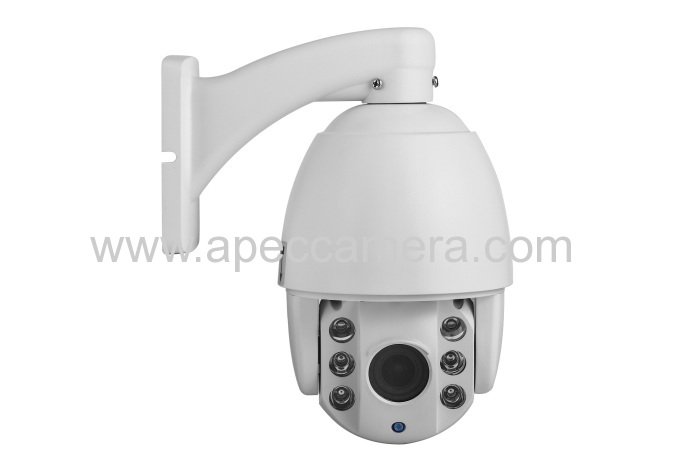

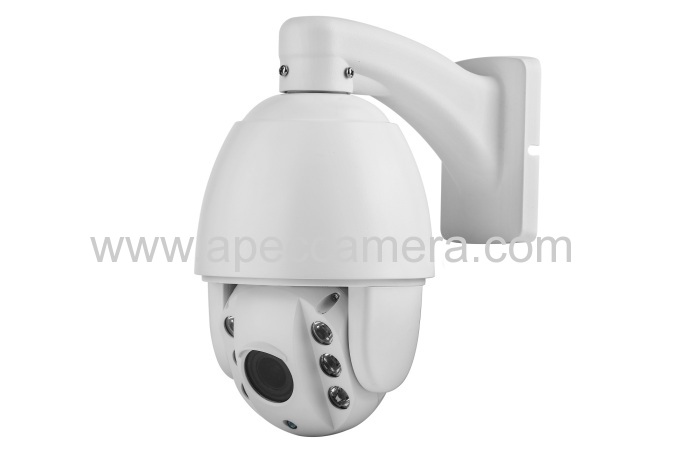

1.3MP 3g 4g sim card 5X optical zoom IP speed dome cameras two way audio weatherproof wifi IP PTZ cctv camera

Model: AP-P966-3G/4G
Place of Origin: Guangdong,China (Mainland)
Compression: H.264
Resolution: 960P
Technology: 3G/4G/Wifi/Wire
IR leds: 6pcs high power leds
IR distance: 60m
Lens: 2.7-13.5mm
SD card: 128G
Onvif: standard 2.4
P2P: Mobile phone/PC/ Tablet
Motion detection: support

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Products :  1.3MP  3g 4g sim card  5X optical zoom  IP  speed dome cameras   two way audio  weatherproof   wifi  IP PTZ  cctv camera

Features :

1.3 megapixel HD 3G/4G IP camera, maximum resolution 1280*960;

Support 3G/4G, support AP mode;

Support up to 128G TF card storage;

2.7-13.5mm 5X optical zoom auto focus lens;

Support two way audio;

Pan tilt rotation, horizontal:355°&vertical:90°;

Waterproof level IP66;

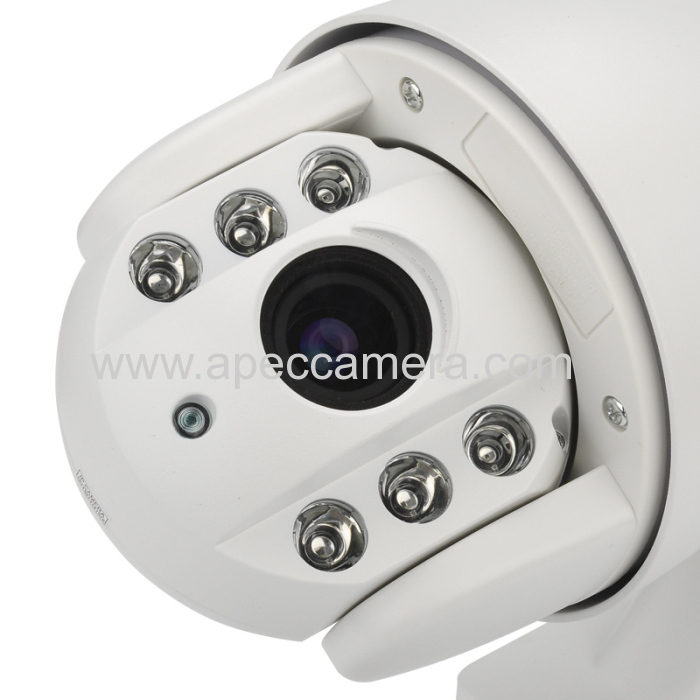

6pcs array infrared LEDs, night vision distance 60m;

Support P2P, view & anywhere & anytime;

Elegant outline and easy installation;

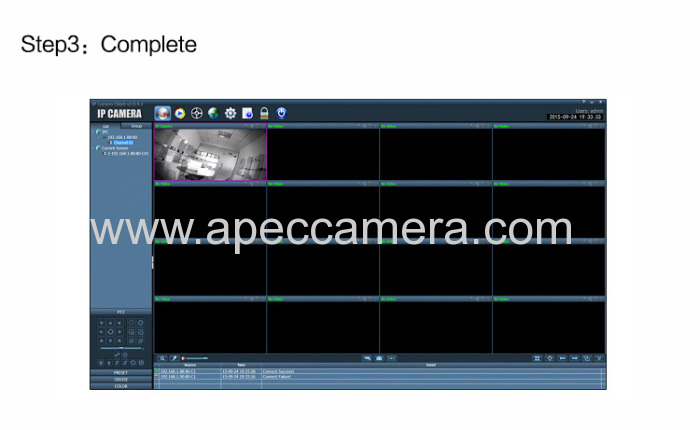

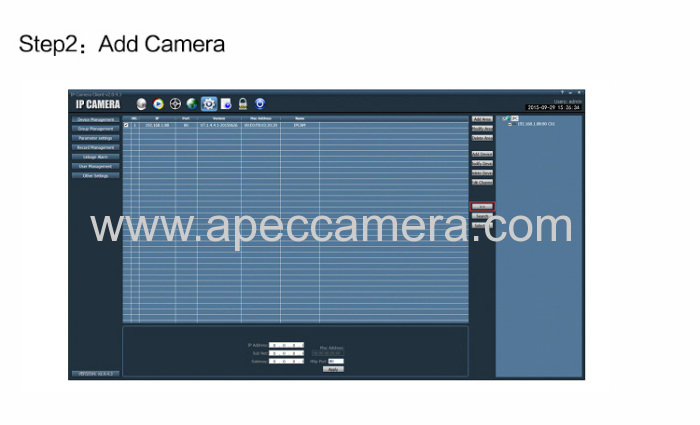

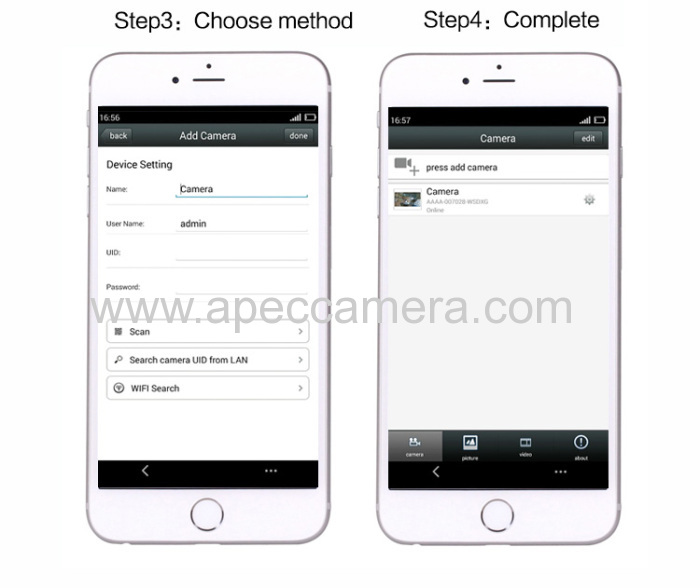

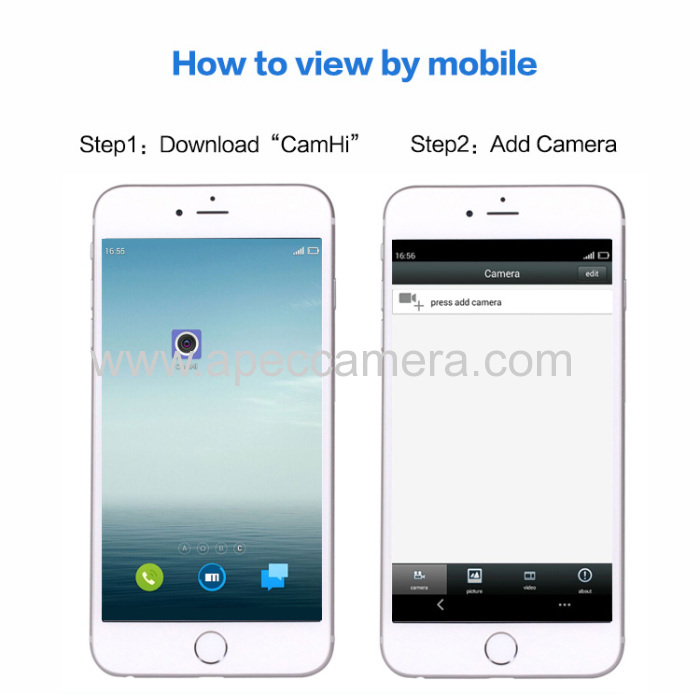

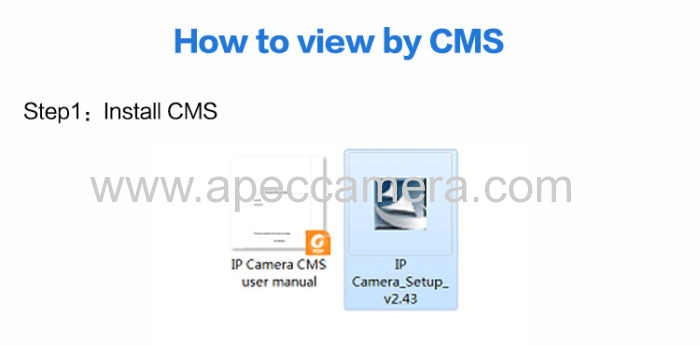

Provide android & ios APP and professional CMS PC client software;

Support all over the world 3G/4G band


Specification :

Model

AP-P966-3G/4G

Video

Sensor

1.3 megapixel 1/3 " SC1135 low lux CMOS

Video resolution

Main stream: 1280x960@25fps, 1280x720@25fps

Sub stream: 640x480/640x352@25fps, 320x240/320x176@25fps

Video compression

H.264

Lens

2.7-13.5mm 5X optical zoom auto focus lens

View angle

96°~26.2°

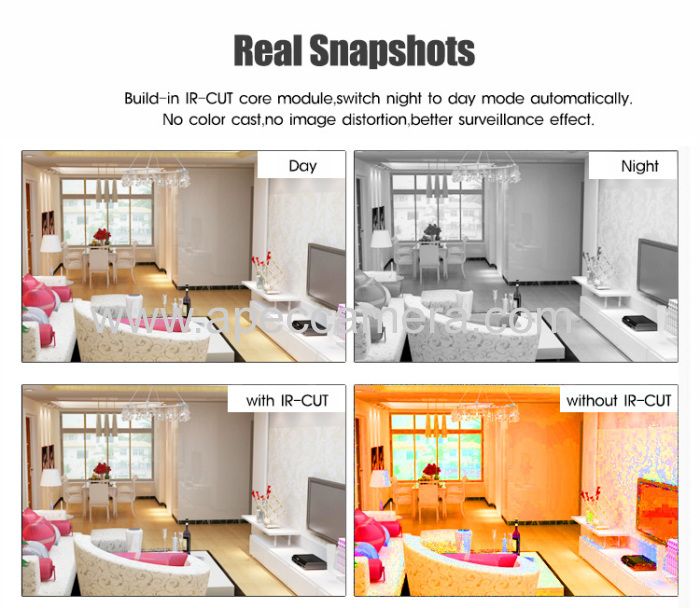

Night vision

6pcs array infrared LEDs, night vision distance 60m

Audio

Audio compression

G.726/G.711

Audio code rate

Rate adaptive

Audio input

Support, can connect the pickup and MIC

Audio output

Support, can connect speakers

Alarm

Motion detecting alarm

Can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage

Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push

Alarm recording

Support Micro SD card and PC client linkage alarm recording

3G/4G

3G standard

WCDMA/TD-SCDMA

3G frequency range

B2(1900MHz),B4(1700MHz),B5(850Mhz),B1(2100MHz), B8(900MHz),B2(1900MHz), B4(1700MHz)

4G standard

FDD-LTE/TDD-LTE

4G frequency range

B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz)

Interface type

Micro SIM card, Plug and play, no need to set

Storage

Micro SD card

Support up to 128G micro SD card

Recording mode

Alarm record, timing record,

Video playback

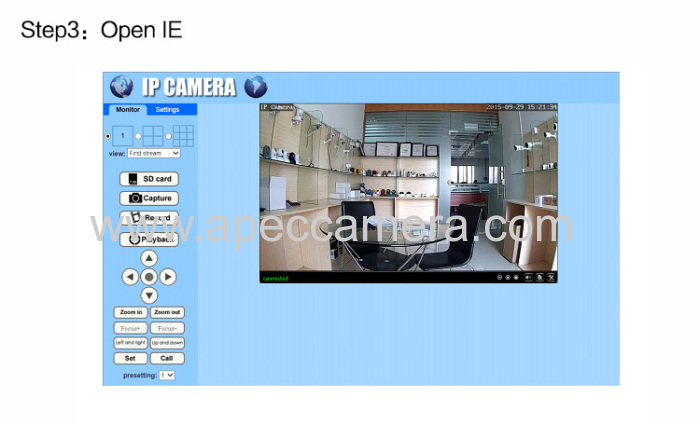

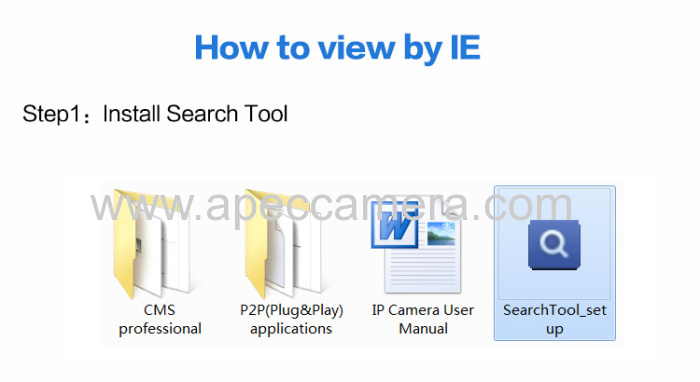

Support APP, IE browser, remote client play and download the video

PTZ

Rotation angle

Horizon: 0°~355°, Vertical: 0°~90°

Horizontal speed

20°~ 40°/S

Vertical speed

10°~ 20°/S

Preset

Support 8 preset points

General specification

Power

DC12V 2A

Operating environment

Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing

Waterproof level

IP66

Product size

239mm×137mm×215mm(L×W×H)

Product weight

1.3kg

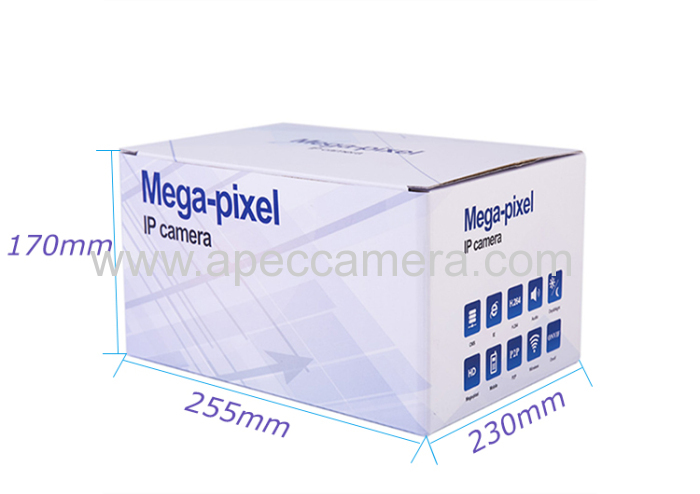

Package size

260mmx230mmx170mm(L×W×H)

Package weight

1.7kg

Reset button

Support
